HP Compaq dc7700 Business Desktop



Model HP dc7700 (2006)
Processor Intel Celeron D - 3.20GHz
Bus Speed 533MHz
Installed Memory 2.0GB DDR2 SDRAM
(4 x 512mb PC2-5300)
Max Memory 4.0GB (4 slots)
Video Graphics Sapphire Radeon HD 5450 PCI-x16 Graphics Card (100292L) w/ 1 GB DDR2 Memory
  • HDMI + Dual Link DVI-I (24+5) + VGA
    		•
    Hard Drive 1 x 80GB SATA II (Samsung HD080HJ/P)
    Optical Drive 1 x DVD-RW + Blu-Ray reader combo drive (LiteOn iHES208)
    Case Style Small Form Factor (Screwless)
    Drive Bays
  • EXTERNAL: 1 x 5.25-inch drive bay
  • INTERNAL: 2 x 3.5-inch hard drive bays
    		•
    Internal Slots
  • Two (2) PCI slots (low-profile)
  • Two (2) PCI Express slots - one x1 and one x16 (low-profile)
  • Three (3) SATA drive connectors
    		•

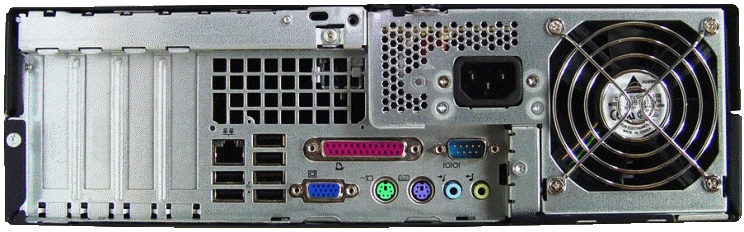

    External Ports
  • 8 x USB ports: 2 front, 6 rear
  • Video: VGA connector
  • Keyboard/Mouse: 2 x PS/2
  • Integrated network adapter (RJ45)
  • 1 (one) Serial connector, 1 (one) Parallel connector

  • Front - Headphones and microphone
  • Rear - Line-in and line-out
    		•
    Networking StarTech Low Profile PCI 10/100 Mbps Ethernet NIC (ST100SLP)
    Sound Realtek Integrated Audio
    Dimensions
  • Depth: 14.9 inches
  • Width: 13.3 inches
  • Height: 3.95 inches
    		•
    Power Supply 240 W
    Operating System Windows XP Professional (w/ Service Pack 3)
